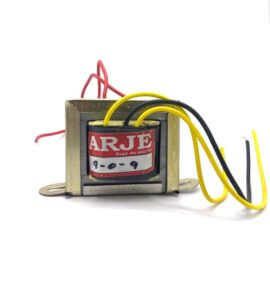

9-0-9V 750mA Step Down Center-Tapped Transformer

139.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • Output current: 750mA
  • Supply voltage: 220-230VAC
  • Output voltage: 9-0-9VAC (9 0 9 V)
  • Soft Iron Core
  • 750mA Current Drain
  • 9 0 9V 750mA Step Down Center Tapped Transformer
SKU: RY-909TRANS750 Category:

Description

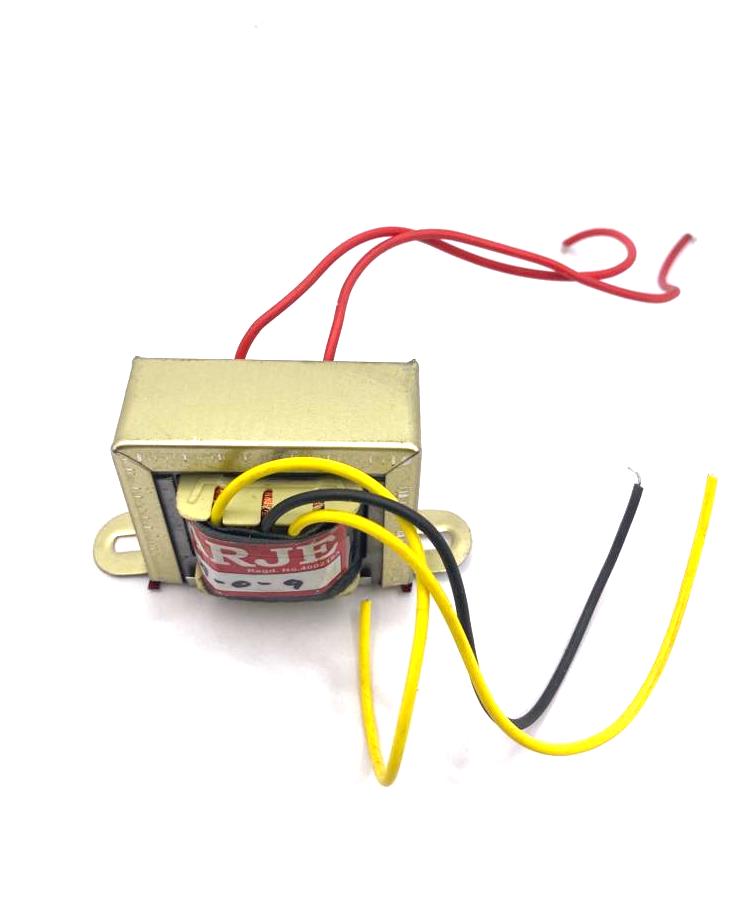

9-0-9V 750mA Step Down Center-Tapped Transformer

9-0-9V 750mA Step Down Center-Tapped Transformer It is a general purpose chassis mounting mains transformer. Transformer has 230 V primary windings and center tapped secondary winding. The transformer has flying colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step down transformer reducing AC 230V to AC 9V.
The Transformer gives two outputs of 9V, 9V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding.
The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the windings.

Features/Specs:

  • Output current: 750mA
  • Supply voltage: 220-230VAC
  • Output voltage: 9-0-9VAC (9 0 9 V)
  • Soft Iron Core
  • 750mA Current Drain
  • Winding: Copper (100%)

Application:

  • DIY projects Requiring In-Application High current drain.
  • On chassis AC/AC converter.
  • Designing a battery Charger.
  • Electronic applications.
  • Step down applications (Power transmission).

Package Includes:

  • 1 X 9-0-9V 750mA Step Down Center-Tapped Transformer

Note: Product Images are shown for illustrative purposes only and may differ from actual product.
