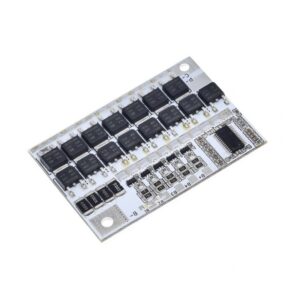

3S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board-White

5S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board-White

₹295.00 (inc. GST)

In stock

Shortage protects recover mode: Offload release
Contact discharge current: 80A
Synopline discharge current: 60A
Charging current: 60A
Ampere balance (Current) : 60 mA
Current balance accuracy : 4.14 ~ 4.24V

SKU: RY1258 Category: Batteries BMS and Accessories

Description

5S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board-White

This protection board is 5s in common use lithium battery protection board (you can adjust for how many strings to be used) Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, overcharge protection, with balance, etc. A common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharges current 80A, charging current 60A. Can used for LMO.Ternary lithium battery.LCO (3.7V)battery packs etc.

Features:

Overcharge protective current:100A
Over discharge protective current:100A
Over-discharge protect delay : 0.5-1.5S
Temperature protection: Yes, have a Temperature control interface.
Disconnect protect: Yes
Shortage protect: Yes
Shortage delay: 100-600 uS
Shortage protects recover mode: Offload release.
Balance function: yes

Features/Specs:

For Li-Po LiMnO Protect Parameter: 3.6V/3.7V
Single-cell battery overcharge protect voltage: 4.21 ~ 4.29V
Single-cell battery overcharge protects recover voltage: 4.14 ~ 4.24V
Overcharge protect delay: 1.5 ~ 2.5S
Single cell battery over-discharge protect voltage: 2.72 ~ 2.88V
Single cell battery over-discharge protect recover voltage: 2.9 ~ 3.1V
Over charge protective current: 100A
Over discharge protective current: 100A
Over-discharge protect delay: 0.5 ~ 1.5S
Temperature protection: Yes, have a Temperature control interface.
Disconnect protect: Yes
Shortage delay: 100 ~ 600 uS
Contact discharge current: 80A
Syncline discharge current: 60A
Charging current: 60A
Ampere balance (Current): 60mA

Package Includes:

1 x 5S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board-White

Note: Product Images are shown for illustrative purposes only and may differ from the actual product
