3S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board with BHDC IC White
₹295.00 (inc. GST)
In stock
- 3S 100A LiFePO4 Battery Balance Charging BMS Protection Board
- Charging Current: 60A
- Current Balance: Yes
- Ampere balance (Current): 60 mA
- Voltage balance accuracy: 4.14-4.24V
Description

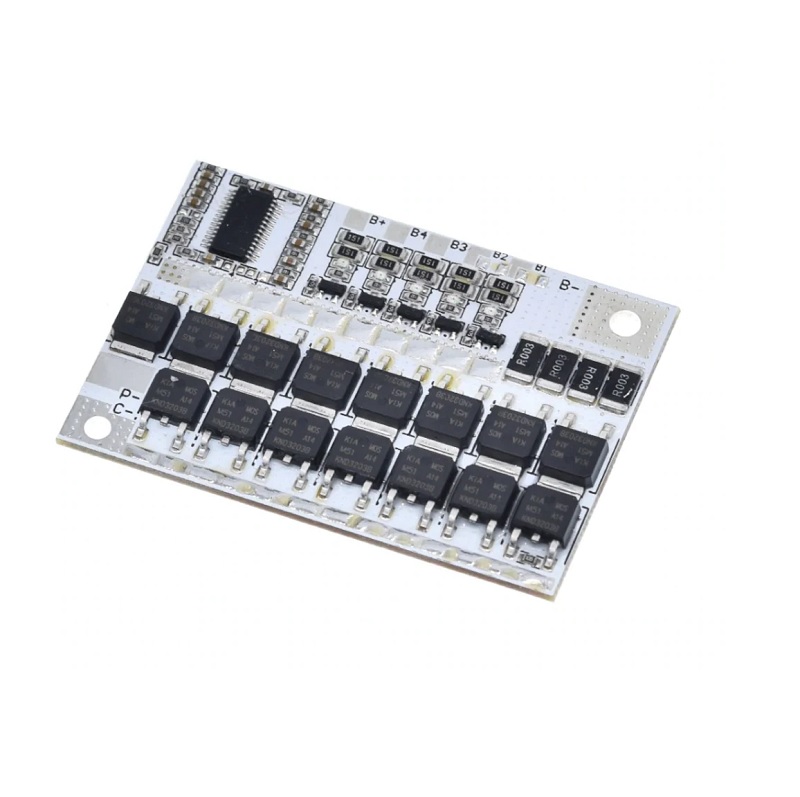

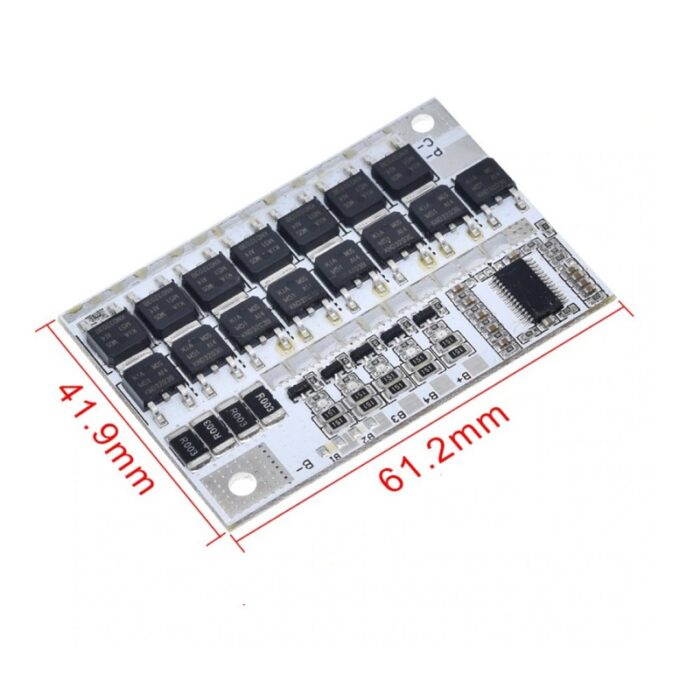

3S 100A LiFePO4 Battery Balance Charging BMS Protection PCB with BHDC IC Board-White
This protection board is 3s in common use lithium battery protection board (you can adjust for how many strings to be used) Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, overcharge protection, with balance, etc. A common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharges current 80A, charging current 60A. Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.
Features:
- Temperature protect: Yes
- Disconnect protect: Yes
- Shortage protection: Yes
- Shortage delay: 100-600 uS
- Shortage protect recovery: YES
- Charging Current: 60A
- Current Balance: Yes
Features/Specs:
- Single-cell battery overcharge protect voltage: 4.21 ~ 4.29V
- Single-cell battery overcharge protect recover voltage 4.14 ~ 4.24V
- Overcharge protect delay: 1.5 ~ 2.5S
- Single-cell battery over-discharge protect voltage: 2.72 ~ 2.88V
- Overcharge protect Current: 100A
- Over-discharge protect Current: 100A
- Over-discharge protect delay: 0.5 ~ 1.5S
- Temperature protect: Yes
- Disconnect protect: Yes
- Shortage delay: 100 ~ 600 uS
- Charging Current: 60A
- Ampere Balance: 60 mA
- Voltage balance accuracy: 4.14 ~ 4.24V
Package Includes:
- 1 x 3S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board WITH BHDC IC White
Note: Product Images are shown for illustrative purposes only and may differ from the actual product
