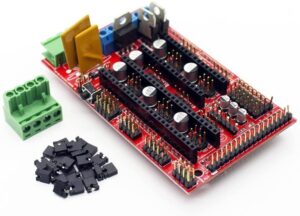

Name: 3D Printer Controller Board RAMPS 1.4 Arduino Mega Shield RepRap Prusa Model - Rytronics.in
Brand: 3D Printer Parts
SKU: RY-3DRAMPS
Price: 349.00 INR
Availability: InStock

3D Printer Controller Board RAMPS 1.4 Arduino Mega Shield RepRap Prusa Model

₹349.00 (inc. GST)

In stock

Supply Voltage: 12V
Standard interfaces (as that of the extruder)
Reserved GCI like I2C and RS232
3 MOSFET’s are applied to the heater/ fan and thermistor circuit.
Another 5A added to protect the component parts.
An 11A fuse is added to the hotbed.
Support 5 stepper drive board

SKU: RY-3DRAMPS Categories: 3D Printer Parts, Motors and Drivers

Description

The 3D Printer Controller Board RAMPS 1.4 Arduino Mega Shield RepRap Prusa Model is an all-in-one design to fit the necessary components for a 3D printer into one plug in shield for an Arduino MEGA. The plug in shield design includes plug in stepper drivers and extruder control electronics sockets for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. Ramps boards are the heart of most DIY 3D printers on the market and a nice clean compact way to integrate all the systems into a compact enclosure mountable format.

RAMPS can only work when connected to its motherboard Mega 2560 and A4988/DRV8825. Owning to its stability in operation and great compatibility with the most 3D printer (all RepRap-model such as Prusa i2 and i3). The combination of Ramps1.4 + MEGA2560 + A4988/DRV8825 is becoming a mainstream of DIY 3D printer control board.

Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. Ramps boards are the heart of most DIY 3D printers on the market and a nice clean compact way to integrate all the systems into a compact enclosure mountable format.

Features:

Expandable to control other accessories.
Supply Voltage: 12V
Standard interfaces (as that of the extruder)
Reserved GCI like I2C and RS232
3 MOSFET’s are applied to the heater/ fan and thermistor circuit.
Another 5A added to protect the component parts.
An 11A fuse is added to the hotbed.
Heated bed control with additional 11A fuse
Shield has on pin header sockets so they can be replaced easily or removed for use in future designs.
Suitable for 2-phase and 4-phase motors
Servo-style connectors are used to connect to the end stops motors and LEDs. These connectors are rated for 3A, very compact, and globally available.
SD Card add on available
LEDs indicate when heater outputs on
All the MOSFET can be controlled by PWM
Use the interface of the servo motor to adjust the level of the printing platform automatically.
Adding an SD module for SD ramps module.
Expandable to control other accessories.
Pololu boards are on pin header sockets so they can be replaced easily or removed for use in future designs.
2 stepper motor for Z axis in parallel.

Package Includes:

1 x 3D Printer Controller Board RAMPS 1.4 Arduino Mega Shield RepRap Prusa Model
