30A Intelligent LCD Solar Controller with USB Output Port

Sale!
20A-Intelligent-LCD-Solar-Controller
20A Intelligent LCD Solar Controller 1
20A Intelligent LCD Solar Controller 3
20A Intelligent LCD Solar Controller 4
20A Intelligent LCD Solar Controller 5
20A-Intelligent-LCD-Solar-Controller

30A Intelligent LCD Solar Controller with USB Output Port

(5 customer reviews)

Original price was: ₹699.00.Current price is: ₹419.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Built-in Industrial Micro-Controller
  2. Big LCD Display
  3. All Adjustable Parameters
  4. Full 4 Stage PWM Charge Management
SKU: RY-RY1028 Categories: , , , , ,

Description

This is a Digital PWM Solar Charge Controller for the lead-acid batteries connected to a solar power system. When connected to the battery, this charge controller automatically detects the battery voltage from 12V-24V. This charge controller has some advanced features like built-in short circuit protection, open-circuit protection, reverse voltage protection, overload protection, etc which makes it ideal for grid power systems.

Features:

  1. Built-In Industrial Micro Controller
  2. Big LCD Display
  3. Full 4 Stage PWM Charge Management
  4. Dual MOSFET Reverse Current Protection
  5. Low Heat Production
  6. Built-In Industrial Micro Controller
  7. Big LCD Display
  8. Full 4 Stage PWM Charge Management
  9. Low Heat Production
  10. Automatic identification of system voltage level
  11. Adjustable parameters of battery charge-discharge control
  12. Settable operating modes of load
  13. With dual USB 5V output
  14. Battery type setting
  15. Dual Mosfet reverse current protection

Protections:

  • Short circuit protection
  • Over temperature protection
  • Battery low voltage protection
  • Battery reverse polarity protection
  • Battery overcharge protection

Specifications:

Model SY2024H
Battery Input 12-24V Auto
Charging Current (A) 30
Discharge Current (A) 30
Max. Solar Input (V) <50
Stop battery charge voltage 13.7V / 27.4V
Load ON voltage 12.6V / 25.2V
Load OFF voltage 10.7V / 21.4V
USB 2A@5V
Operating Temperature (°C) -35 to 60
Length (mm) 150
Width (mm) 78
Height (mm) 35
Weight (gm) 150

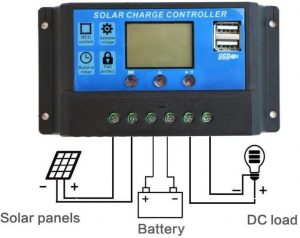

How To use Solar controller and Connection Diagram

How To use Solar controller and Connection Diagram
How To use Solar controller and Connection Diagram

Package Includes:

1 x 30A Intelligent LCD Solar Controller

NOTE

  • Suitable for solar panels regulation only
  • Pay attention to polarity at wiring connecting
  • Install the charge controller to the battery as close as possible to avoid losses
  • Please connect controller to the battery first and then to the solar panel and to the load. The disassemble in the reverse order
  • When installing for the first time, please make sure the battery has sufficient voltage so that the charge controller can recognize the battery type
  • Charge controller heats up during operation. Please be careful and install it in the well-ventilated place
