Sale!

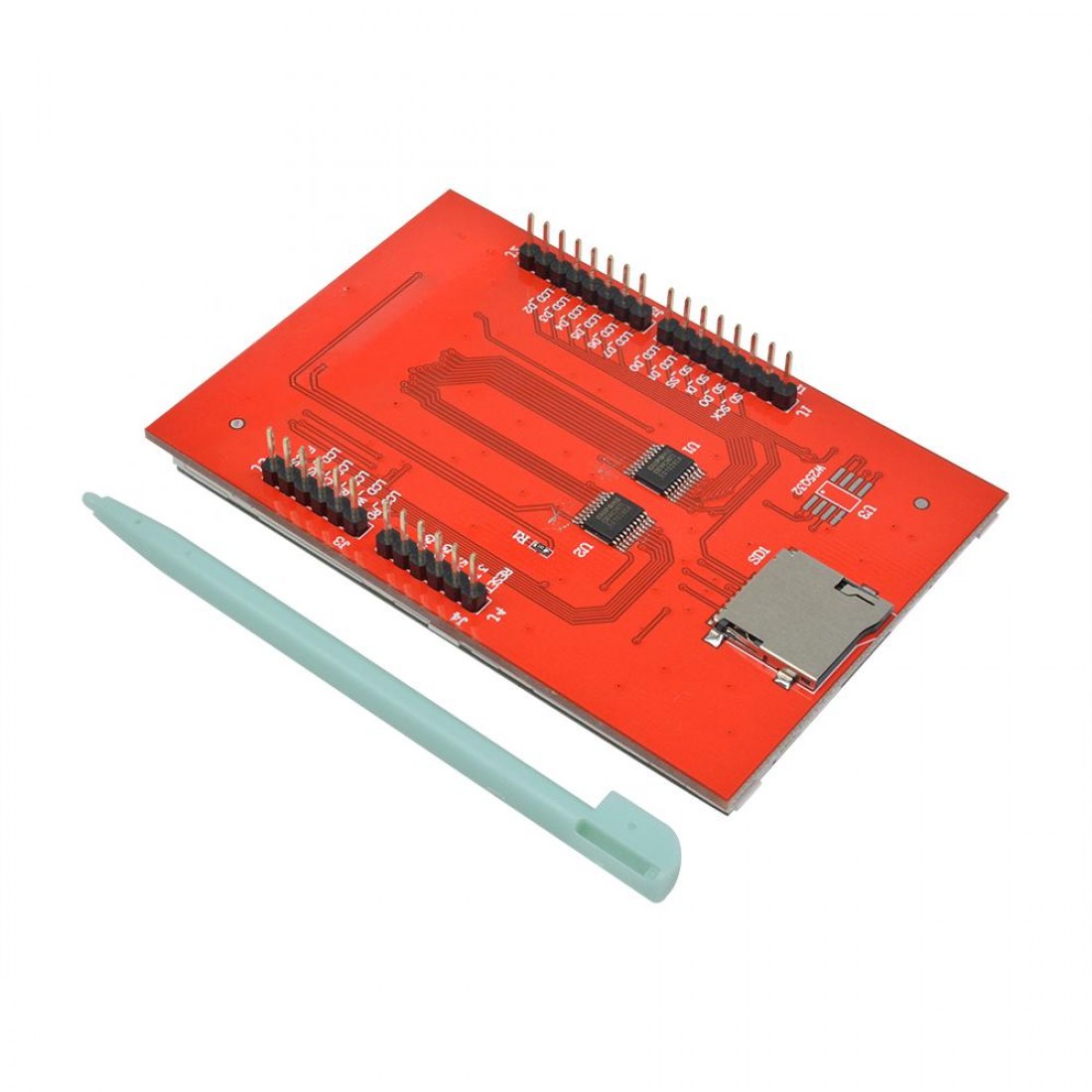

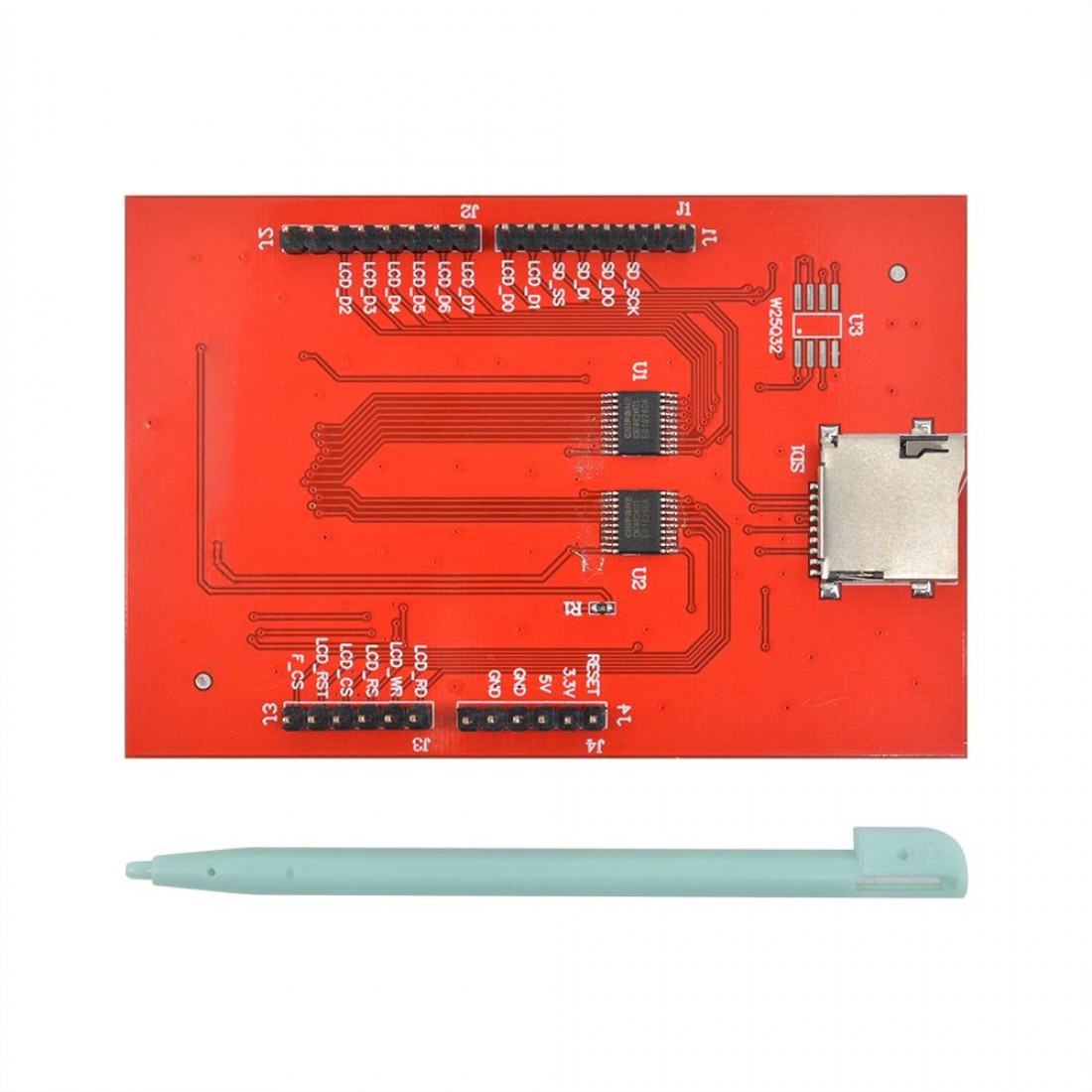

3.5 inch TFT 480×320 Ultra HD LCD Touch Screen Display for Arduino

Original price was: ₹1546.00.Current price is: ₹1045.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  • LCD Type: TFT
  • LCD Interface: SPI
  • LCD Controller: ILI9486
  • Touch Screen Type: Resistive
  • Touch Screen Controller: XPT2046
  • Colors: RGB, 65K colors
  • Resolution: 480×320 (Pixel)
  • Aspect Ratio: 8:5
  • I/O Voltage: 3.3V/5V
SKU: RY1048 Categories: , ,

Description

3.5 inch TFT 480×320 Ultra HD LCD Touch Screen Display for Arduino is big (3.5″ diagonal) bright and colorful! 480×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display, and double our 2.8″ TFT.

As a bonus, this display has a resistive touchscreen sensor allowing you to control your application simply by touching any area of the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.

Features :

  • 3.5-inch color screen,support 65K color display,display rich colors
  • 480X320 resolution, optional touch function
  • Easy to expand the experiment with SD card slot
  • Provide a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Product Parameters

Name Parameter
Display Color RGB 65K color
Screen Size 3.5(inch)
Type TFT
Driver IC ILI9486
Resolution 480*320 (Pixel)
Module Interface 8-bit parallel interface
Active Area 73.44*48.96(mm)
Module PCB Size 85.49*55.63(mm)
Operating Temperature -20℃~70℃
Storage Temperature -40℃~70℃
Operating Voltage 5V/3.3V



Package Includes :

  • 1 x 3.5″ Inch TFT Touch Screen Module

User Manual and Datasheets:
