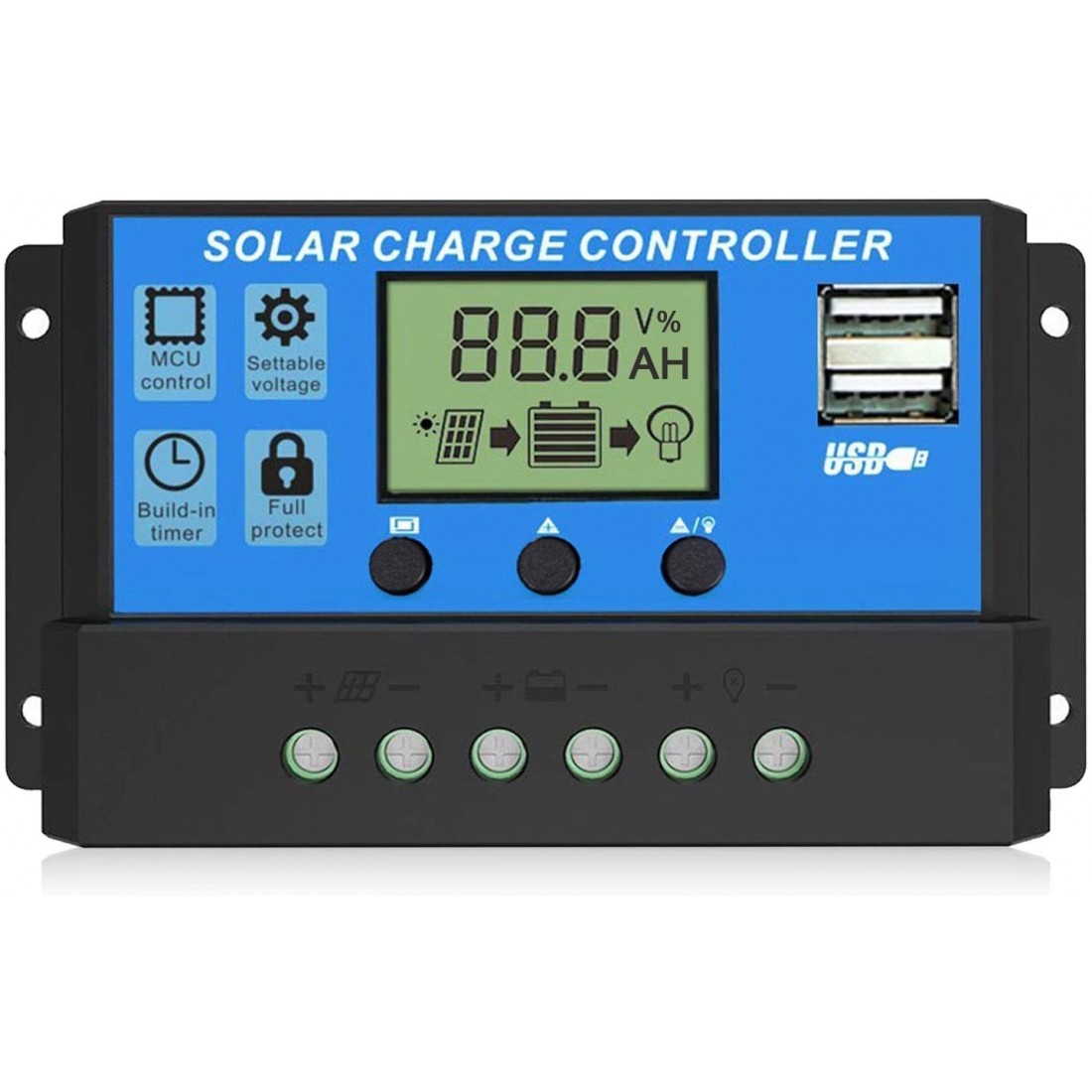

10A Intelligent LCD Solar Controller with USB Output Port

Rated 4.00 out of 5 based on 1 customer rating

(1 customer review)

Original price was: ₹699.00.Current price is: ₹349.00. (inc. GST)

In stock

Built-in Industrial Micro-Controller
Big LCD Display
All Adjustable Parameters
Full 4 Stage PWM Charge Management

SKU: RY-20AMPSOLR-1 Categories: Batteries and Accessories, Batteries BMS and Accessories, Miscellaneous Module, Modules, Sensor and Modules, Voltage & Current Sensor

Description

This is a Digital PWM Solar Charge Controller for the lead-acid batteries connected to a solar power system. When connected to the battery, this charge controller automatically detects the battery voltage from 12V-24V. This charge controller has some advanced features like built-in short circuit protection, open-circuit protection, reverse voltage protection, overload protection, etc which makes it ideal for grid power systems.

Features:

Built-In Industrial Micro Controller
Big LCD Display
Full 4 Stage PWM Charge Management
Dual MOSFET Reverse Current Protection
Low Heat Production
Built-In Industrial Micro Controller
Big LCD Display
Full 4 Stage PWM Charge Management
Low Heat Production
Automatic identification of system voltage level

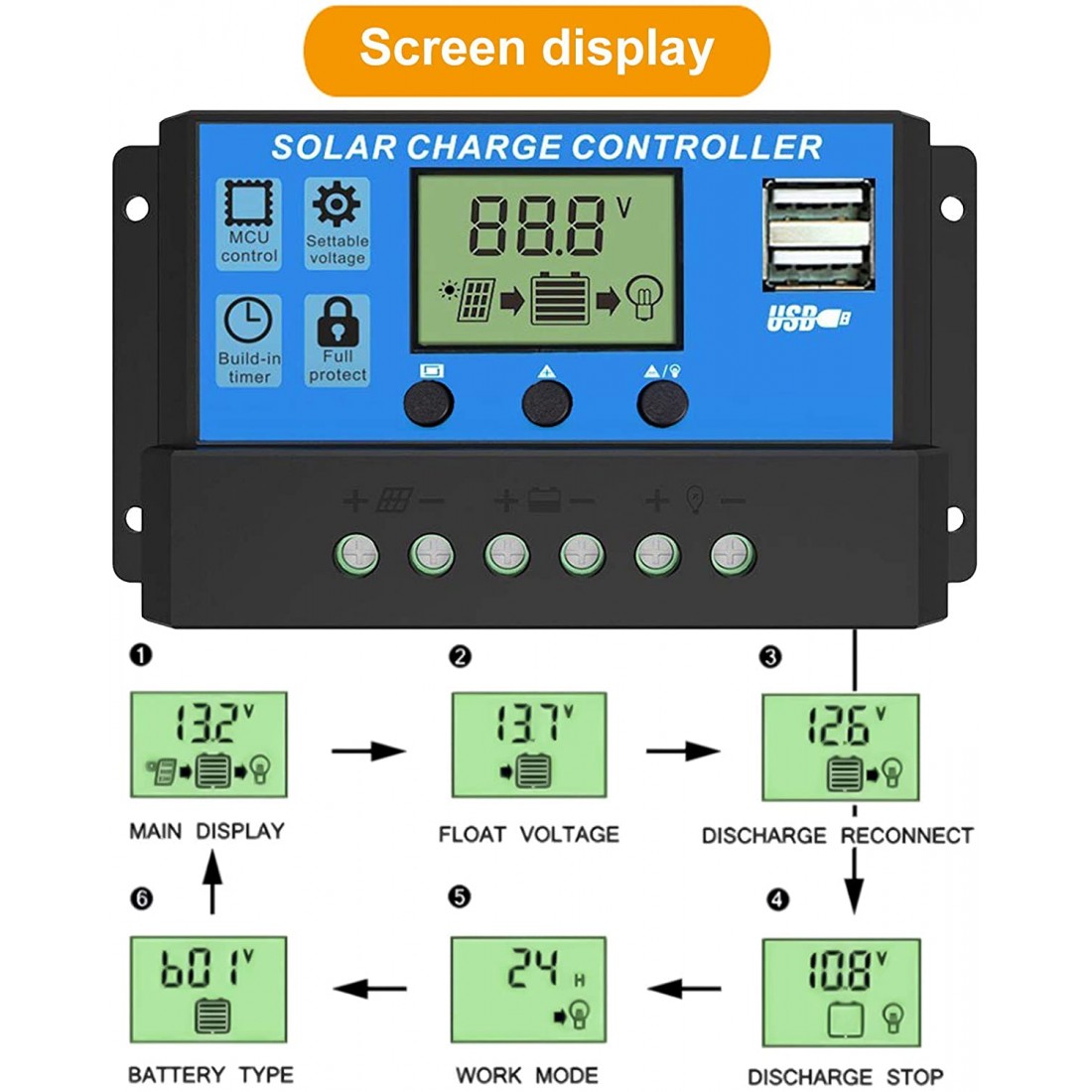

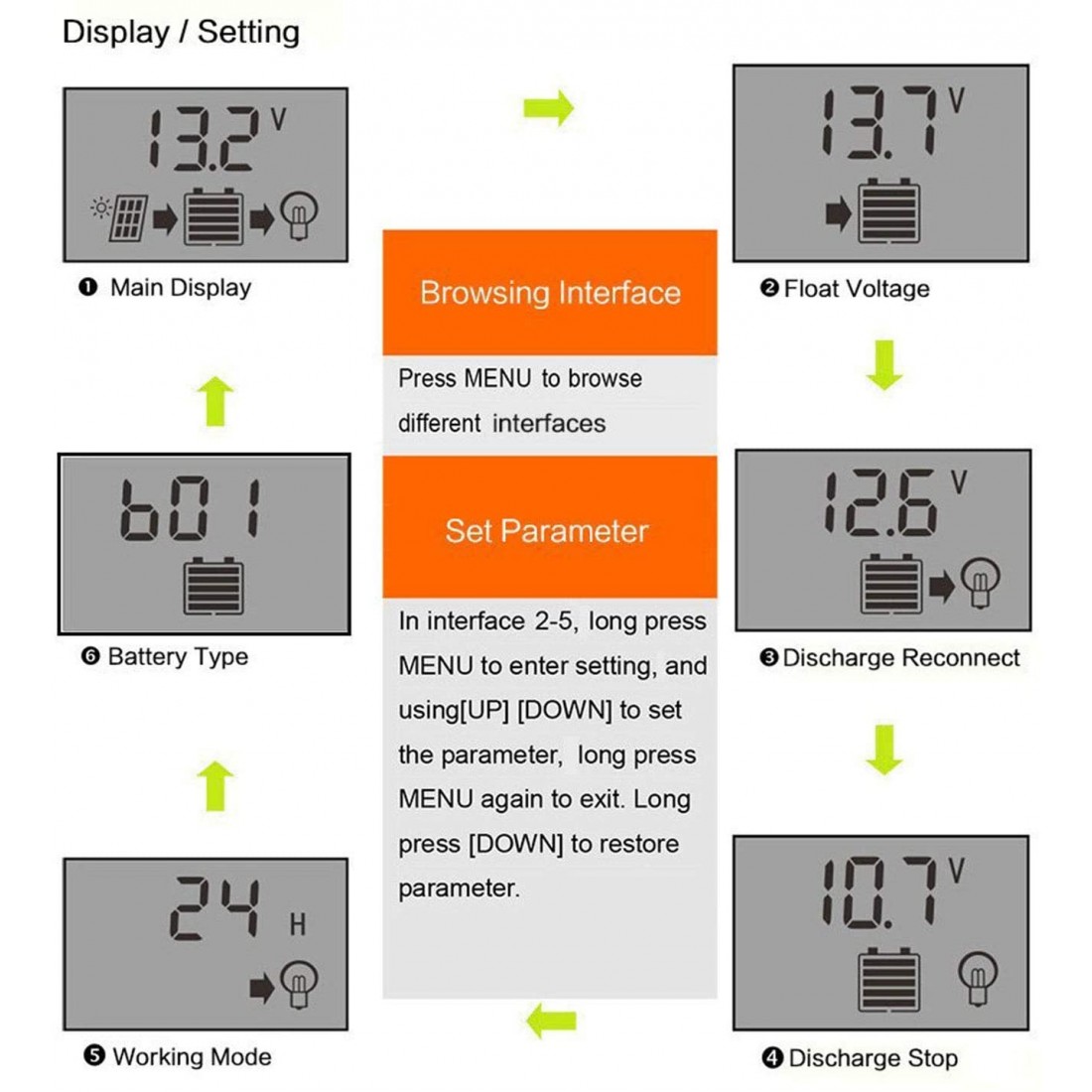

Adjustable parameters of battery charge-discharge control
Settable operating modes of load
With dual USB 5V output
Battery type setting
Dual Mosfet reverse current protection

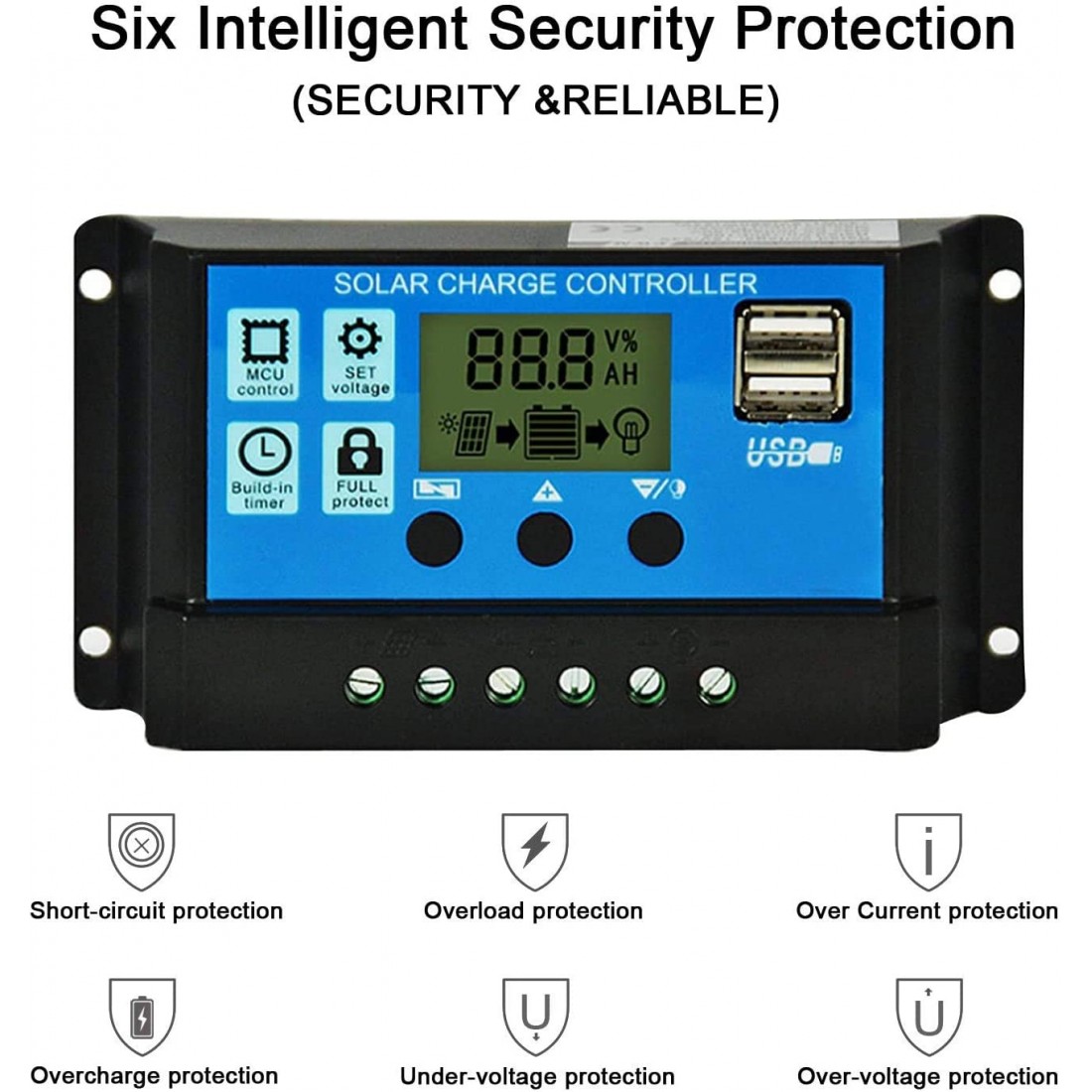

Protections:

Short circuit protection
Over temperature protection
Battery low voltage protection
Battery reverse polarity protection
Battery overcharge protection

Specifications:

Model	SY2024H
Battery Input	12-24V Auto
Charging Current (A)	10
Discharge Current (A)	10
Max. Solar Input (V)	<50
Stop battery charge voltage	13.7V / 27.4V
Load ON voltage	12.6V / 25.2V
Load OFF voltage	10.7V / 21.4V
USB	2A@5V
Operating Temperature (°C)	-35 to 60
Length (mm)	150
Width (mm)	78
Height (mm)	35
Weight (gm)	150

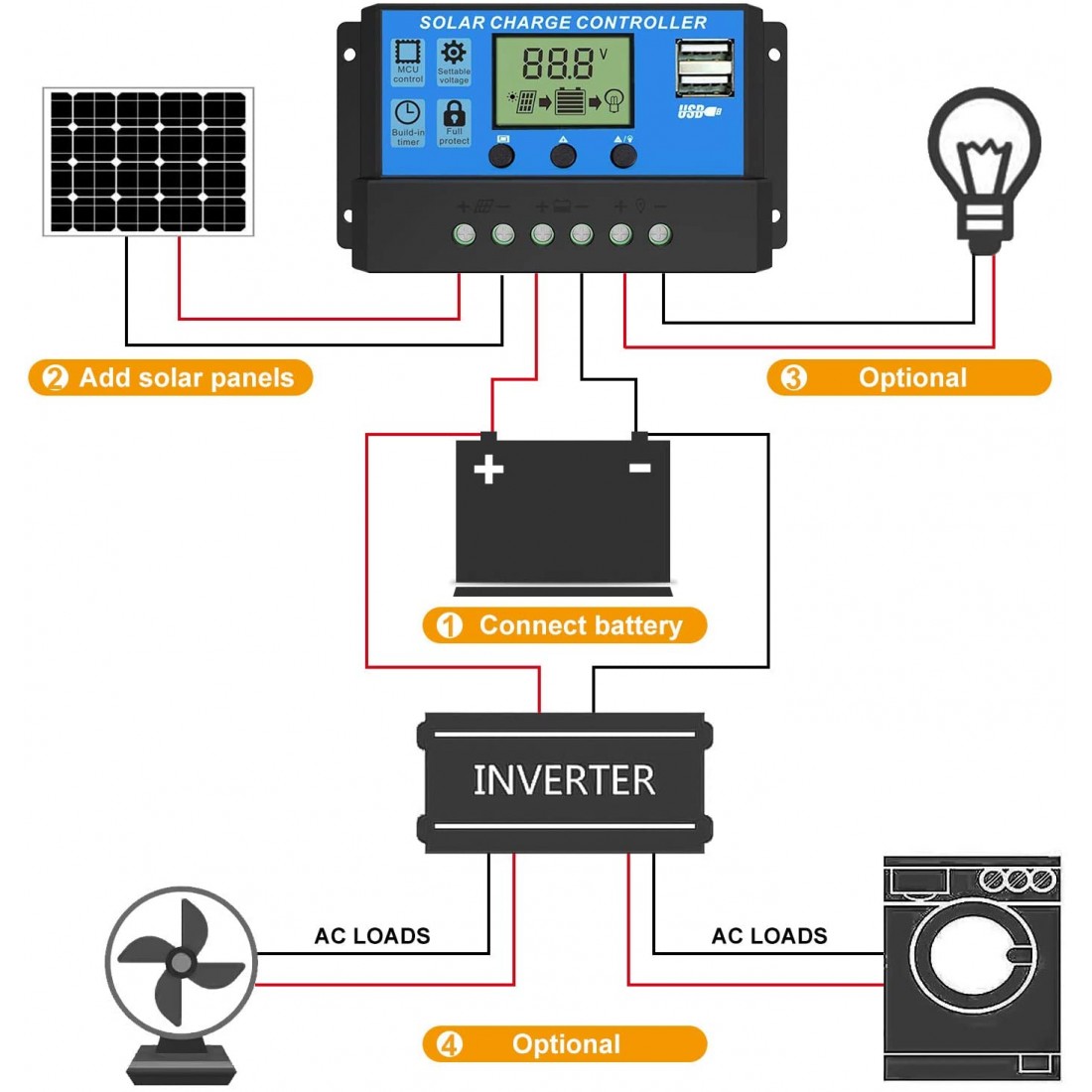

How To use Solar controller and Connection Diagram

Package Includes:

1 x 10A Intelligent LCD Solar Controller

NOTE

Suitable for solar panels regulation only
Pay attention to polarity at wiring connecting
Install the charge controller to the battery as close as possible to avoid losses
Please connect controller to the battery first and then to the solar panel and to the load. The disassemble in the reverse order
When installing for the first time, please make sure the battery has sufficient voltage so that the charge controller can recognize the battery type
Charge controller heats up during operation. Please be careful and install it in the well-ventilated place
