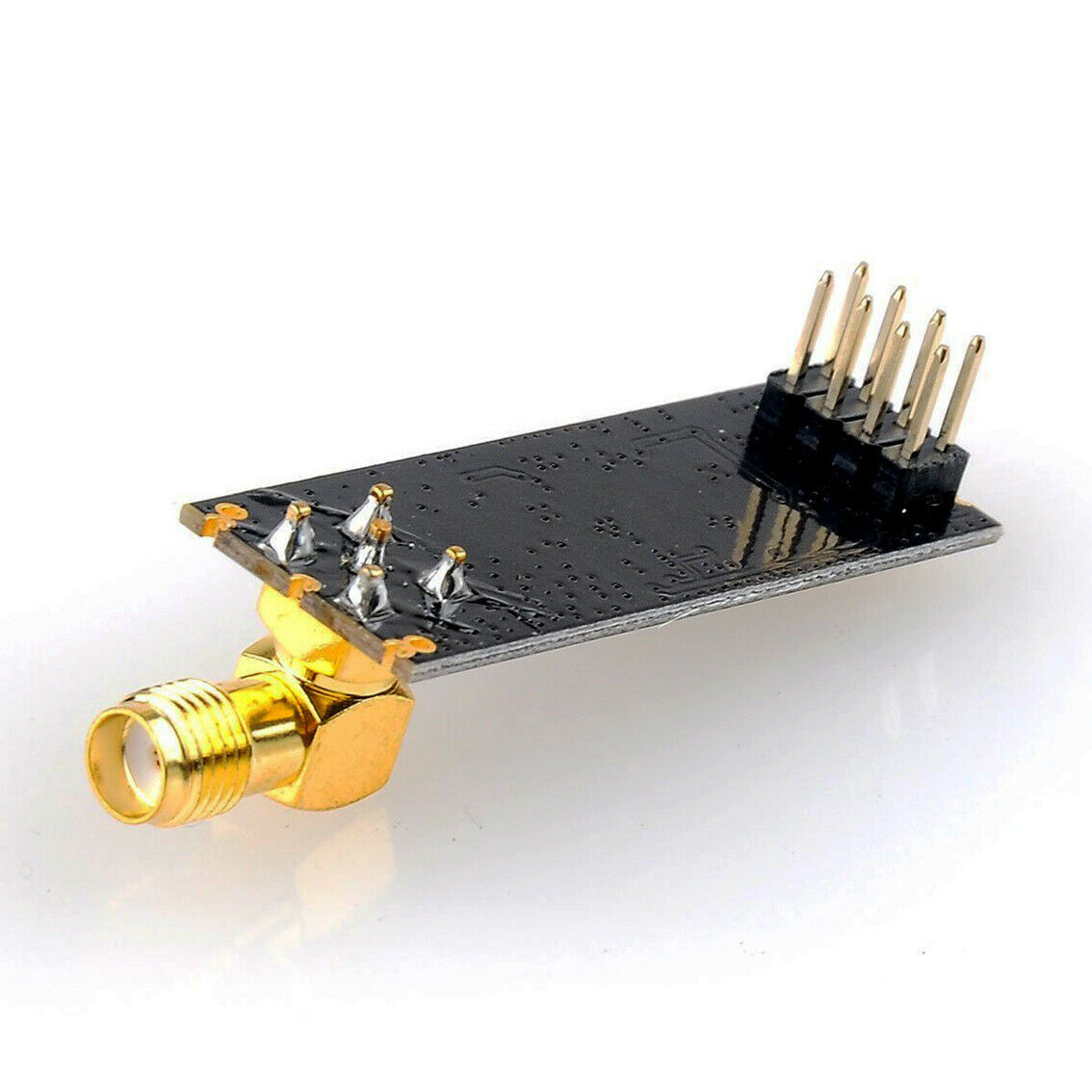

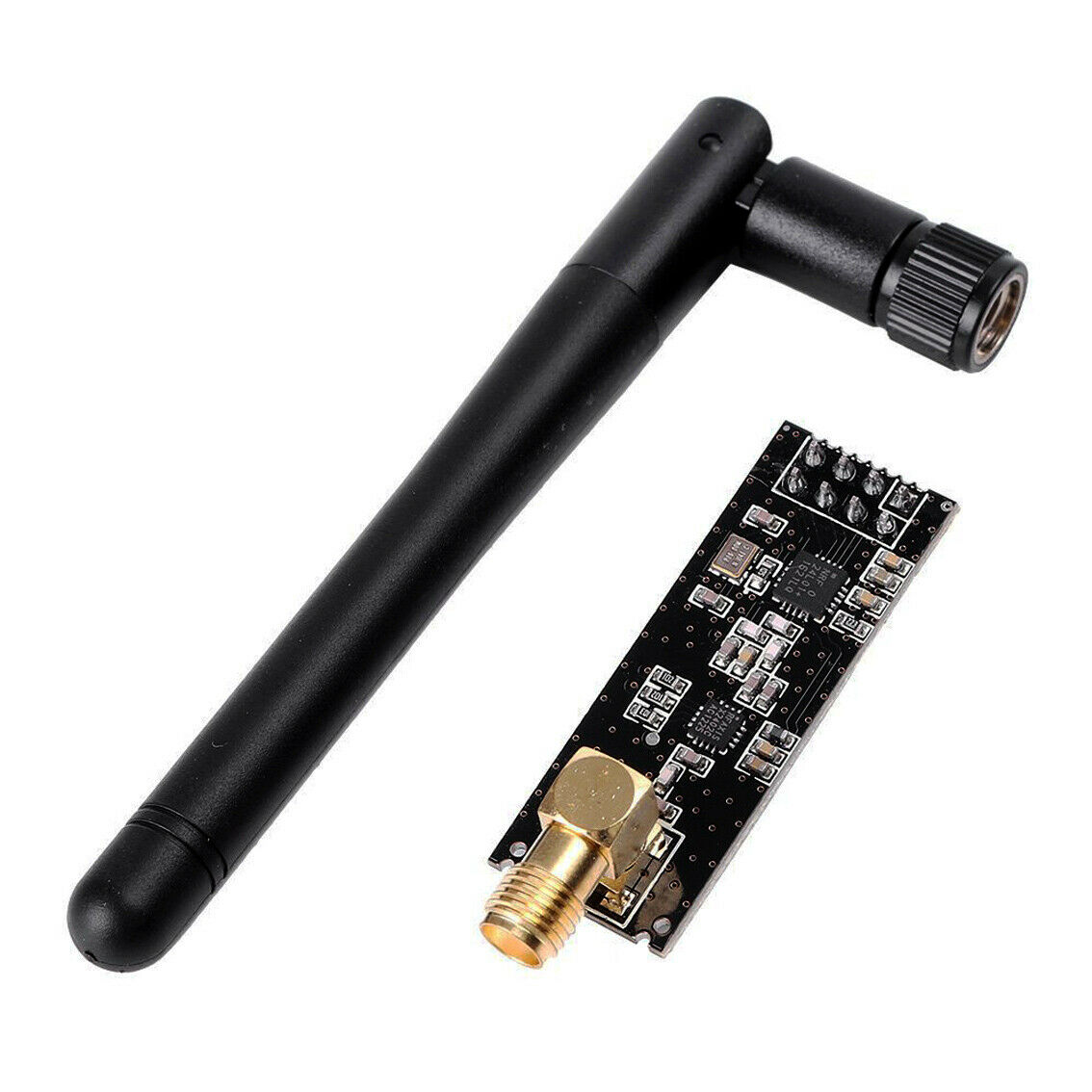

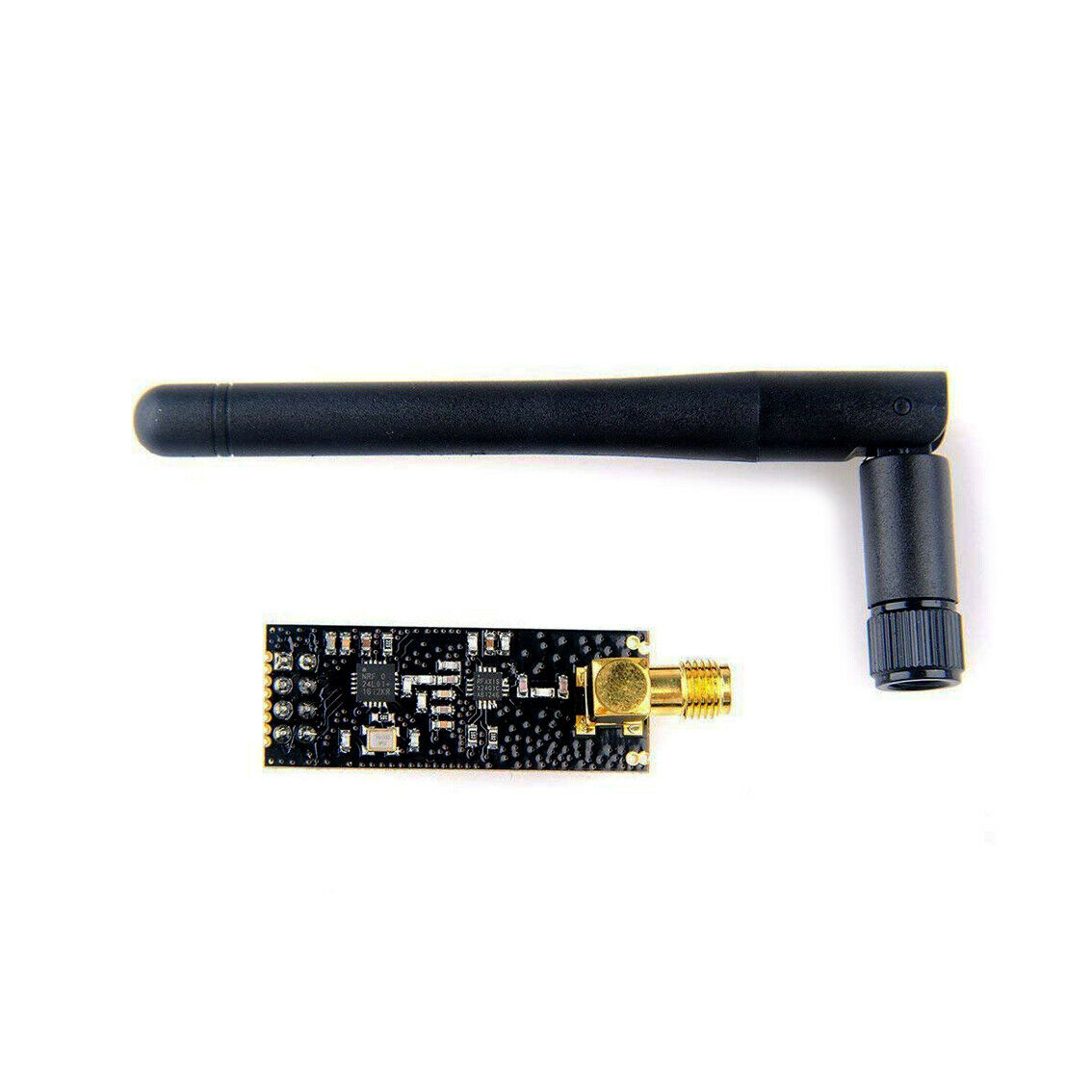

2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna

Sale!
NRFL24L01-Module-with-Anteena
NRFL24L01 Module with Anteena 2
NRFL24L01-Module-with-Anteena

2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna

(1 customer review)

Original price was: ₹249.00.Current price is: ₹159.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Voltage: 3-3.6V (recommended 3.3V) V.
  2. Maximum output power: +20dBm.
  3. Power-down mode current: 4.2uA.
  4. Operating Range: 1Km
  5. Antenna Gain (peak): 2Dbi.
  6. 2MB rate (Open area): 520m.
  7. 1MB rate (Open area): 750m.
  8. 250Kb rate (Open area): 1100m.
  9. It uses 2.4GHz global open ISM band, with license free.
  10. SPI interface facilitates the communication with MCU I/O port.
SKU: RY-NRFLSMA Categories: , , Tags: , , , , , , , ,

Description

  • Arduino and Raspberry Pi compatible wireless 2.4GHz transceiver
  • Includes 2.4GHz 2.2dBi duck antenna
  • Signal PA (Power Amplifier) and LNA (Low-Noise Amplifier) extends the range of this module considerably
  • Applications: wireless peripherals, remote control systems such as RC vehicles and consumer remote electronics, wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation

Features :

  1. It uses 2.4GHz global open ISM band, with license-free.
  2. Transmit power is greater than +20 dBm.
  3. Support six-channel data reception.
  4. 2Mbit/s speed makes high-quality VoIP possible
  5. Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
  6. Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal;
  7. SPI interface facilitates the communication with MCU I/O port.
  8. Facilitate the development for customers, without development RF part.
  9. Software programming is fully compatible with NRF24L01 modules.

Package Includes :

1 x 2.4GHz NRF24L01 Transceiver module.

1 x SMA Antenna.
