2.4 Inch Touch Screen TFT Display Shield for Arduino

(2 customer reviews)

Original price was: ₹699.00.Current price is: ₹428.00. (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. 2.4″ Touch LCD TFT display module for Arduino
  2. 240*320 pixels resolution
  3. Ability to display 262000 different colors
  4. The shield comes equipped with a microSD card slot.
  5. SPFD5408 controller with built-in video RAM buffer
SKU: RY1047 Categories: ,

Description

2.4″ Inch Touch Screen TFT Display Shield adds a touch up to your Arduino project with a beautiful large touchscreen display shield with built-in microSD card connection. This TFT display is big (2.4″ diagonal) bright and colorful! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display.


Features:

  1. 2.4″ diagonal Touch LCD TFT display
  2. 240×320 resolution, 18-bit (262,000) color
  3. 8-bit digital interface, plus 4 control lines
  4. 5V compatible! Use with 3.3V or 5V logic
  5. Onboard 3.3V 300mA LDO regulator
  6. Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD
  7. Works with any Arduino Uno and mega compatible boards

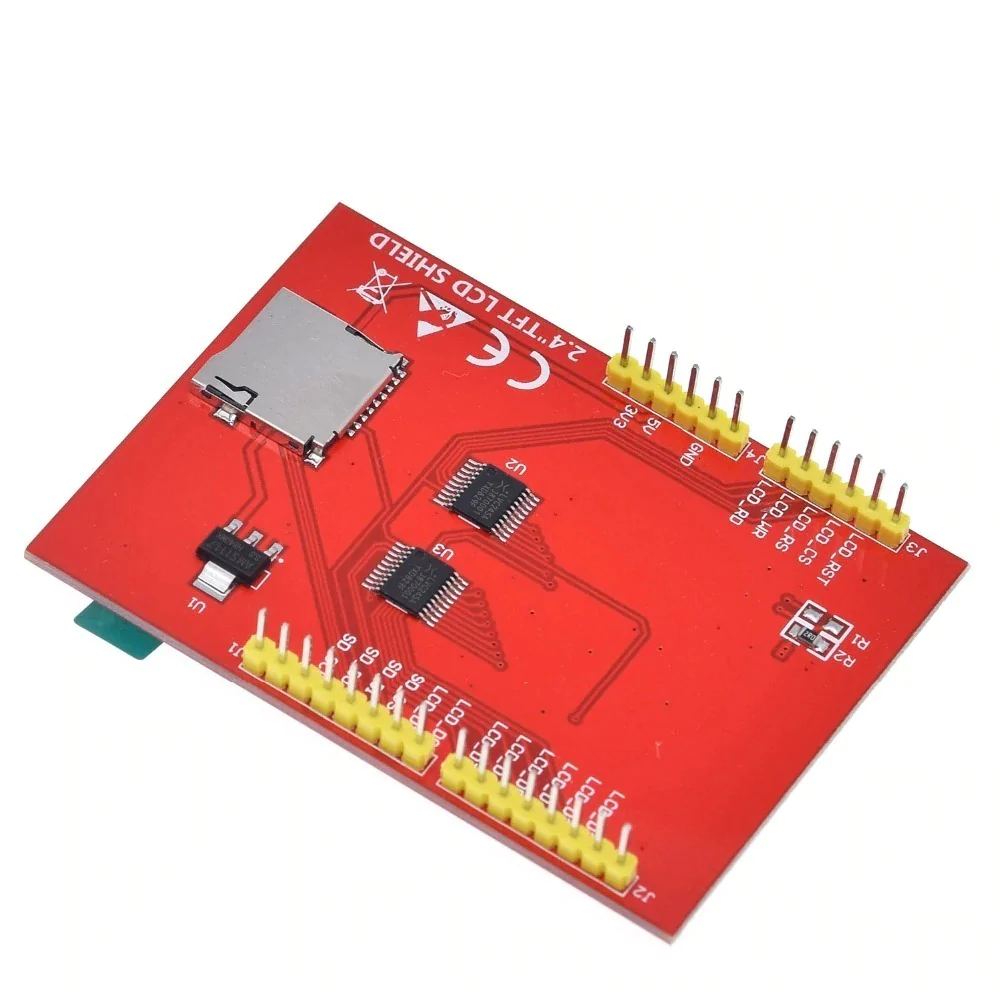

Pin Layout:

Number Pin Label Pin Description
1 LCD_RST LCD bus reset signal, low level reset
2 LCD_CS LCD bus chip select signal, low level enable
3 LCD_RS LCD bus command / data selection signal,low level: command, high level: data
4 LCD_WR LCD bus write signal
5 LCD_RD LCD bus read signal
6 GND Power ground
7 5V 5V power input
8 3V3 3.3V power input, this pin can be disconnected
9 LCD_D0 LCD 8-bit data Bit0
10 LCD_D1 LCD 8-bit data Bit1
11 LCD_D2 LCD 8-bit data Bit2
12 LCD_D3 LCD 8-bit data Bit3
13 LCD_D4 LCD 8-bit data Bit4
14 LCD_D5 LCD 8-bit data Bit5
15 LCD_D6 LCD 8-bit data Bit6
16 LCD_D7 LCD 8-bit data Bit7
17 SD_SS SD card SPI bus chip select signal, low level enable
18 SD_DI SD card SPI bus MOSI signal
19 SD_DO SD card SPI bus MISO signal
20 SD_SCK SD card SPI bus clock signal

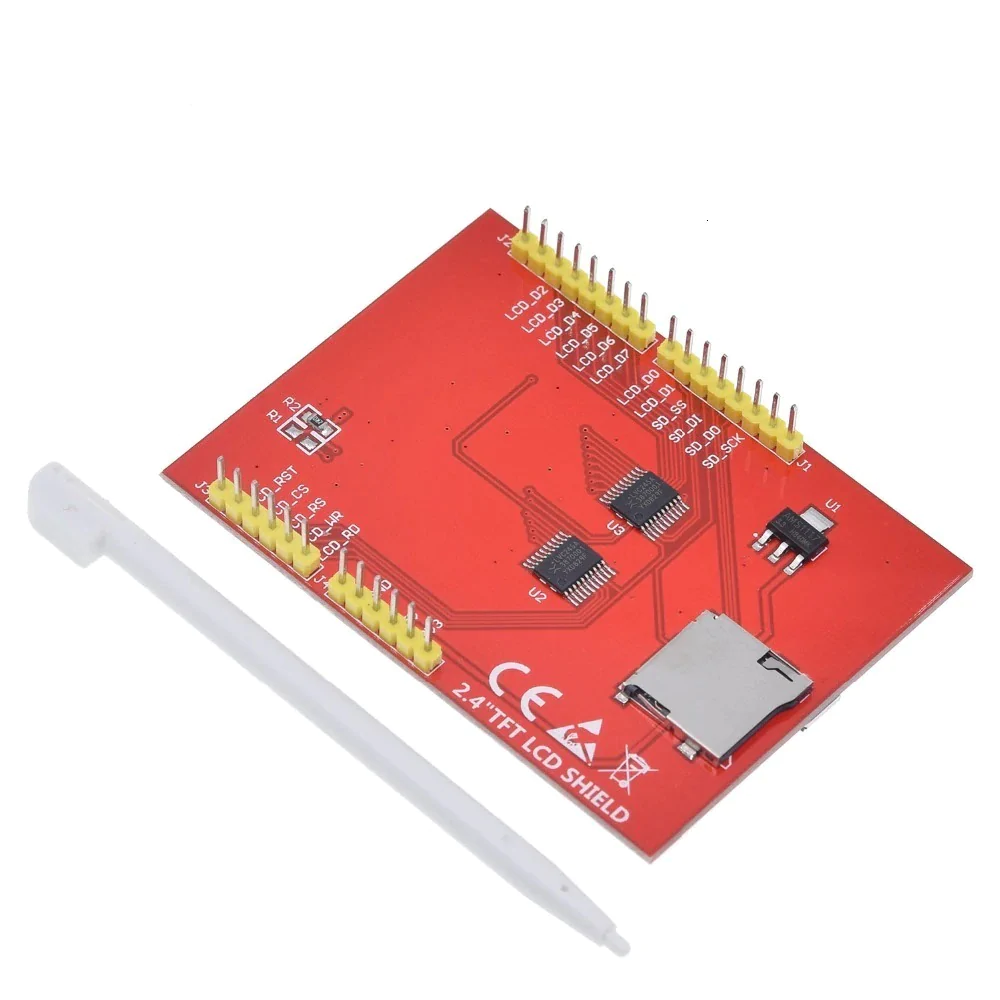

Package Includes:

1 x 2.4″ Inch Touch Screen TFT Display Shield for Arduino UNO

1 x Stylus Pen

2 reviews for 2.4 Inch Touch Screen TFT Display Shield for Arduino

  1. Himanshu Pal (verified owner)

  2. Jai Bhagwan (verified owner)

    Very good product and recieved on time
