Name: 1S 3.7V 4.5A 3MOS BMS Li-ion 18650 Battery Protection Board - Rytronics.in
Brand: Batteries BMS and Accessories
SKU: RY1222
Price: 29.00 INR
Availability: InStock
Rating: 3.50 (2 reviews)

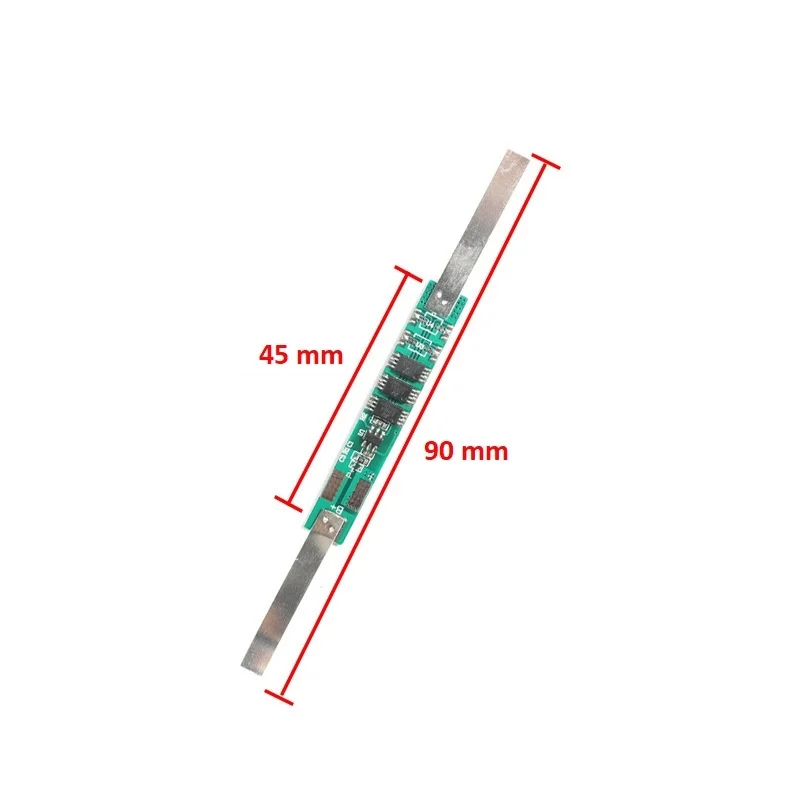

1S 18650 3.7V lithium battery protection plate

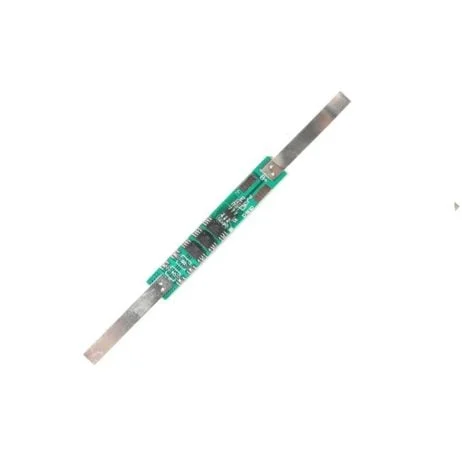

1S 18650 3.7V lithium battery protection plate 1

1S 3.7V 4.5A 3MOS BMS Li-ion 18650 Battery Protection Board

Rated 3.50 out of 5 based on 2 customer ratings

(2 customer reviews)

₹29.00 (inc. GST)

In stock

Over voltage: 4.25 ± 0.05v
Over-discharge voltage: 4.23 ± 0.05v
Over-voltage: 2.54 ± 0.1V
Maximum continuous electricity charge/discharge current: 4.5A
Maximum discharge current: 5A

SKU: RY1222 Categories: Batteries BMS and Accessories, Batteries and Accessories

Description

PRODUCT DESCRIPTION

Nowadays Li-ion batteries are most popular to be used in many indoor and outdoor gadgets, these batteries are preferred due to their high charge storage capacity. such batteries are widely used in today’s portable devices. they are compact, more efficient and have a high energy intensity compared to other types of batteries.

One drawback of such a battery is that we need to continually monitor their charging and discharging process if we do not do this, it badly affects battery life and also reduces the charge storing capacity. If we discharge such battery below a certain voltage range, then the battery cell has a high risk of damage and if we overcharge such battery then it may explode.

To overcome such issues, we can use battery protection and battery charging circuits such as this product. This is a Li-ion single-cell charger/protection circuit that can be used to charge a single cell of 15 Amp capacity or 2500Mah parallel-connected 5 to 6 li-ion cells. In this MOSFET are employed to do the monitoring task which protects our battery cells from overcharge, over-discharge, and short circuits.

Protection:

Overcharge protection.
over-discharge protection.
short circuit protection.
overcurrent protection.

Wiring instructions:

B battery is positive.
B- battery negative.
P outputs the positive input for the battery pack.
P- outputs the negative electrode for the battery pack.

Features:

The high-precision voltage sensing circuit
Small in size
Color: Green
The charger terminal uses high-voltage devices.
Built-in three-stage overcurrent detection circuit (overcurrent1, overcurrent2, load short circuit);
MOS transistors can control battery charge and discharge

Specification:

Model	Li-ion 18650
Product Type	Li-ion BMS
Over-current detection current	7.5 A
Charging voltage	4.2V
Maximum sustained current	6A
A discharge detection voltage	2.45 + / – 0.1 V
Charging	release of the 4.23 + / – 0.05 V
Charging test voltage	4.25 + / – 0.05 V
Dimensional Accuracy (mm)	35 x 7.4 x 7.4
Shipping Weight	0.005 kg
Shipping Dimensions	7 × 5 × 1 cm

Package Includes:

1 x 1S 18650 3.7V lithium battery protection plate

2 reviews for 1S 3.7V 4.5A 3MOS BMS Li-ion 18650 Battery Protection Board

Rated 4 out of 5

Manohar V.P. (verified owner) – 16/03/2024

Good
Rated 3 out of 5

Siddhesh D. (verified owner) – 06/10/2024

Low Amps , Shutodown at 2A, it doesn’t support 4A for 18650 rated at 3C
