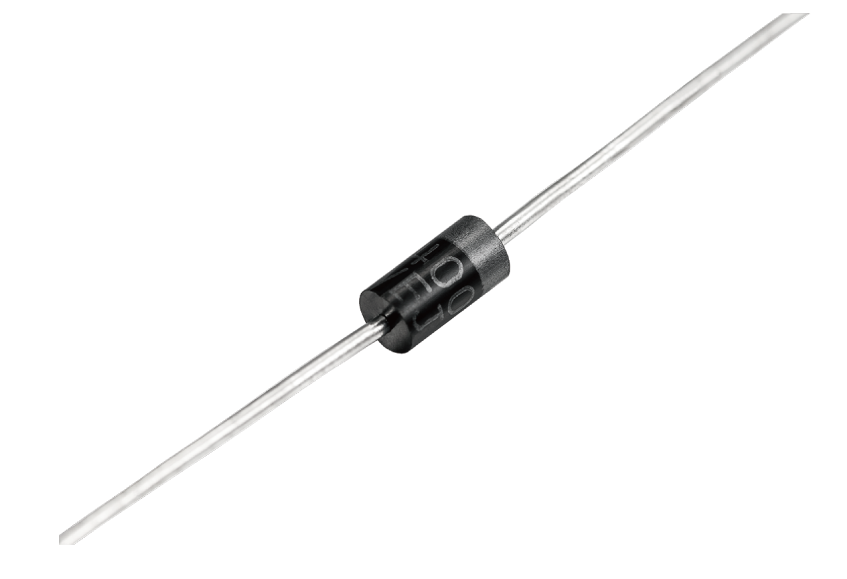

1N4007 Diode (Pack of 5)
₹5.00 (inc. GST)
In stock
- Model : 1N4007
- Peak Reverse Voltage 1000V
- Maximum RMS Voltage 700V
- Maximum DC Blocking Voltage 1000V
- Average Forward Current: 1.0A
- Peak Forward Surge Current: 30A
Description
1N4007 Diode a device which allows current flow through only one direction, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible. The power dissipation of this diode is 3W.
Specifications:
- Peak Reverse Voltage 1000V
- Maximum RMS Voltage 700V
- Maximum DC Blocking Voltage 1000V
- Average Forward Current: 1.0A
- Peak Forward Surge Current: 30A
- Maximum Instantaneous Forward Voltage: 1.0V
- Maximum DC Reverse Current At Rated DC Blocking Voltage: 5.0µA @ 25°C
- Typical Junction Capacitance: 15pF
- Typical Reverse Recovery Time: 2.0us
- Mounting Type: Through Hole
- Operating Temperature: -55°C ~ 150°C
Applications:
- Can be used to prevent reverse polarity problem
- Half Wave and Full Wave rectifiers
- Used as a protection device
- Current flow regulators
Package Includes:
5 x 1N4007 Diode
