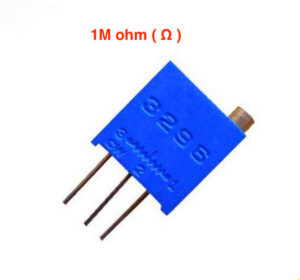

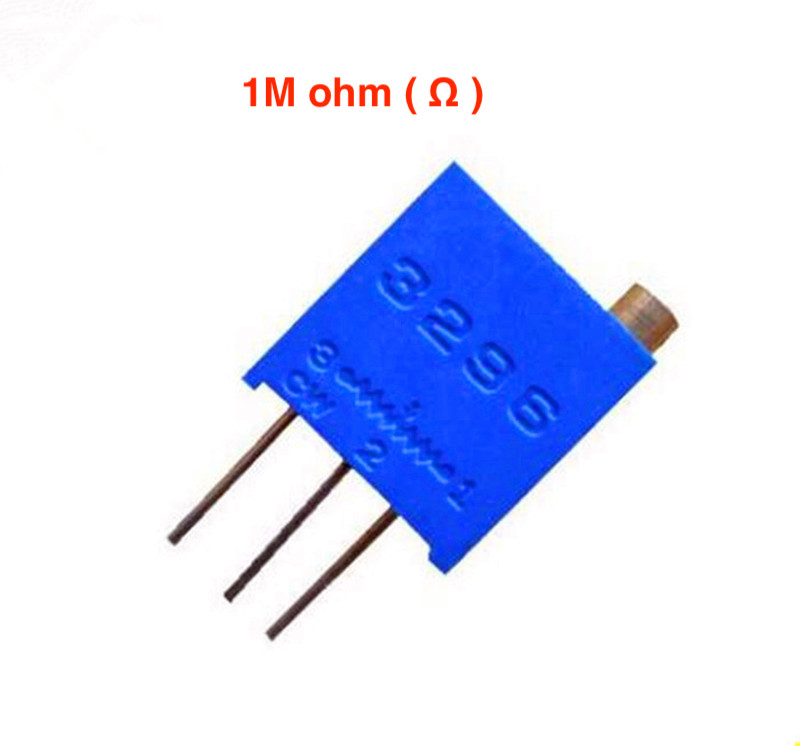

1M ohm ( Ω ) single turn trimpot variable resistors 3296W-1-105LF

100 ohm ( Ω ) multi turn trimpot variable resistors 3296W-1-105LF
Preset Potentiometer
100 ohm ( Ω ) multi turn trimpot variable resistors 3296W-1-105LF

1M ohm ( Ω ) single turn trimpot variable resistors 3296W-1-105LF

(2 customer reviews)

₹12.00 (inc. GST)

In stock

  • Cash on Delivery(COD) available on orders above 499/-
  • Free shipping on prepaid orders above 499/- use FREESHIP Coupon code!
  • 10 Days Return Policy!
  • Dispatch in 24 Hours from Warehouse!
Add to Wishlist
Add to Wishlist
  1. Type                              : multi turn variable resistor
  2. Resistance value        : 1M Ω
  3. Tolerance                    : ±10 %
  4. Temperature Range  : -55 °C to +125 °C
  5. Rotational Life           : 200 cycles

SKU: RY-RESISTRUMP1K-1 Categories: , Tags: , , , , ,

Description

A trimpot or trimmer potentiometer is a small potentiometer. It is use for adjustment, tuning and calibration in circuits. When they are use as a variable resistance; they are called as preset resistors. Basically, Trimpots or presets are normally mount on printed circuit boards and adjusted by using a screwdriver. The material they use as a resistive track is varying. But the most common is either carbon composition or cermet.

Applications

  • Voltage and Current control circuits
  • Also used as volume control knobs in radios
  • Tuning or controlling circuits
  • Analog input control knobs

Package includes

1x  1M ohm ( Ω ) multi turn trimpot variable resistors 3296W-1-105LF
