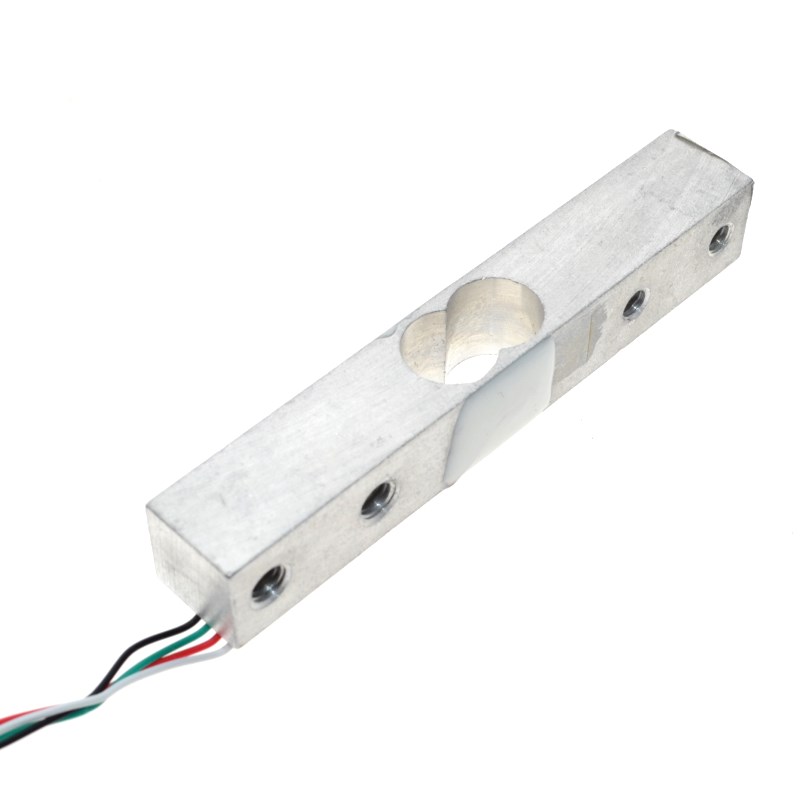

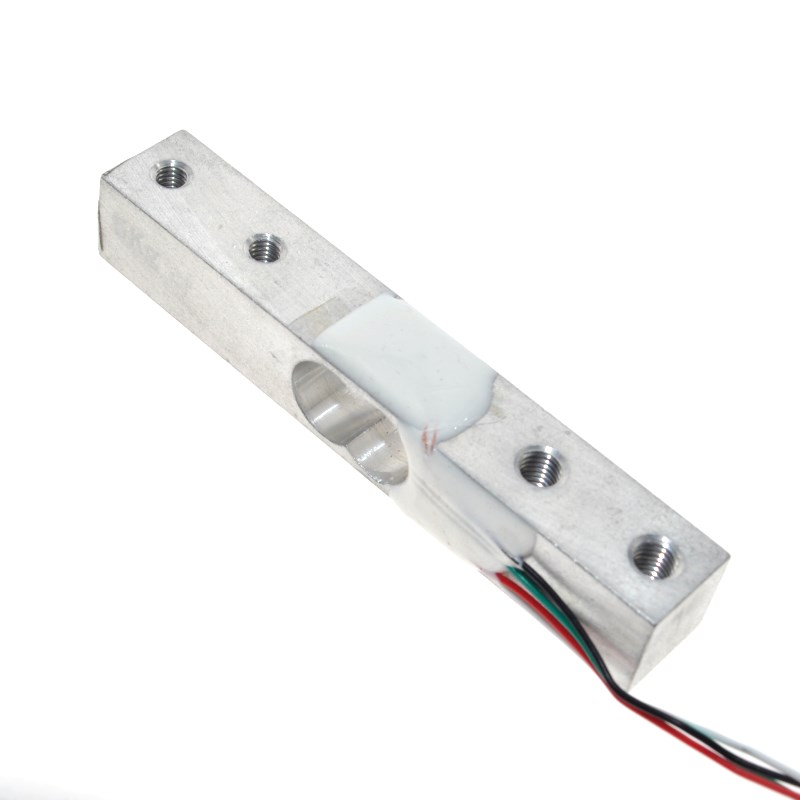

1Kg Load cell – Electronic Weighing Scale Sensor

₹219.00 (inc. GST)

In stock

Capacity: 1KG
Rated output(MV/V): 2.0±0.15
Accuracy class: C2
Maximum number of laod cell verification intervals(N max): 2000
Combined error(%RO): <±0.030
Creep(%RO/30min): 0.03
Temperature effect on sensitivity(%RO/°C): 0.0016
Temperature effect on zero(%RO/°C): 0.003
Zero balance(%RO): 1.0
Input resistance(O): 402±6
Output resistance(O): 350±3
Insulation resistance(MO<50V>): 5000
Operating temperature range(°C): -35~+80
Safe overload(%RO): 150
Ultimate overload(%RO): 200
Load cell material: Aluminium

SKU: RY-1KGLOADSENSOR Categories: Sensor and Modules, Force & Pressure Sensor, Miscellaneous Module

Description

A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells and strain gauge load cells.

This is a standard load cell for measuring weight upto 1 Kg. The output of the load cell is in mili-volts and cannot be directly measured by a micro-controller. So an ADC with high resolution or an instrumentation amplifier is required to make the output of the load cell readable to a micro-controller

Applications:-

Electronic platform scale
Digital scale
Parcel post scale
Electronic balance

Package Includes:

1x 1Kg Load cell – Electronic Weighing Scale Sensor
