Name: 12V MPPT Solar Panel Controller CN3722 3S Lithium Li-ion 18650 Battery Charge Controller Module - Rytronics.in
Brand: Batteries and Accessories
SKU: RY1012
Price: 389.00 INR
Availability: InStock
Rating: 5.00 (1 reviews)

Sale!

12V MPPT Solar Charge Controller for 3S Lithium ion Battery

12V MPPT Solar Charge Controller for 3S Lithium ion Battery 1

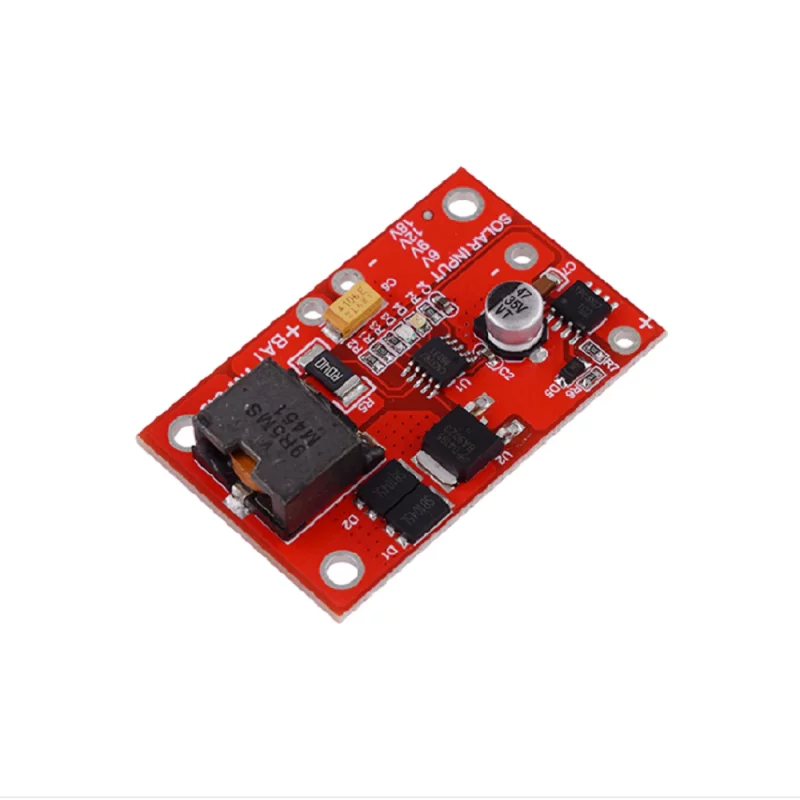

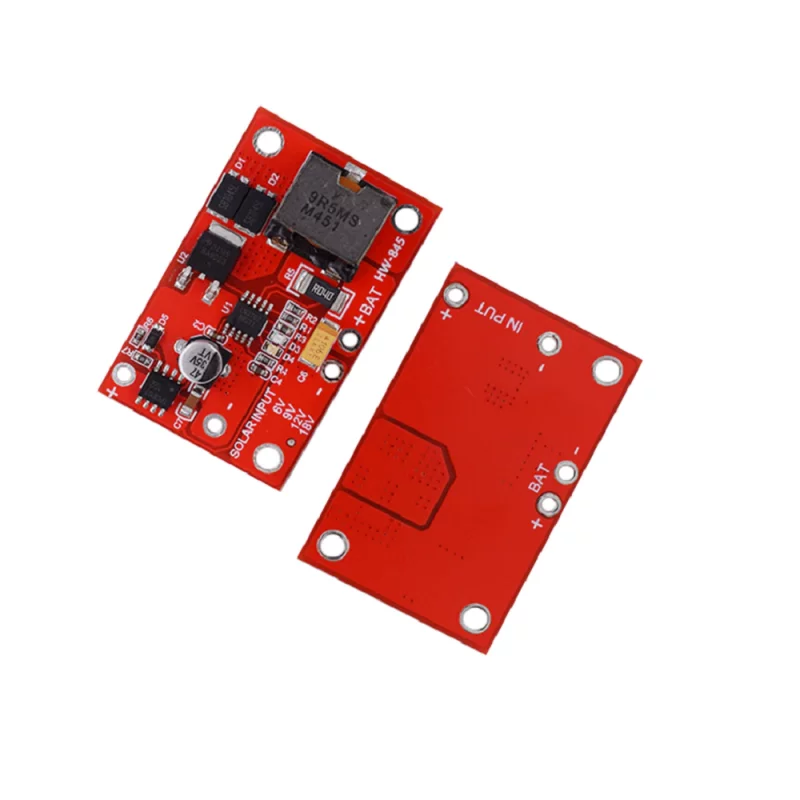

12V MPPT Solar Panel Controller CN3722 3S Lithium Li-ion 18650 Battery Charge Controller Module

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Original price was: ₹599.00.Current price is: ₹389.00. (inc. GST)

In stock

Output voltage: 2-4 series lithium battery or lithium iron phosphate battery (can be adjusted by external resistance).
• Suitable for 2-4 series lithium battery or lithium iron phosphate battery
• Lithium battery 4.2*2 string = 8.4V
• Lithium battery 4.2V*3 string = 12.6V / 4.2V*4 string = 16.8V
• Iron lithium battery 3.6V*3 string = 10.8V / 3.6V*4 string = 14.4V

SKU: RY1012 Categories: Batteries and Accessories, Batteries BMS and Accessories, Voltage Regulator Modules

Description

Features

High-end technology MPPT solar maximum power tracking charge management chip, with trickle,constant current, constant voltage charging management
The use of imported high-frequency low-conduction resistance double MOS tube, high current diode, high efficiency flat high-power inductors, alloy current detection resistor.
The large aluminium cooling fin at the bottom, ensure it keep stability working at the high current
High-speed and efficient way of charging, heat small, fast
Dual status indicator light, no battery when the red-light flashes green light is always on, charging red light, full of self-stop while the green light.

Description

• Output voltage: 2-4 series lithium battery or lithium iron phosphate battery (can be adjusted by external resistance).
• Suitable for 2-4 series lithium battery or lithium iron phosphate battery
• Lithium battery 4.2*2 string = 8.4V
• Lithium battery 4.2V*3 string = 12.6V / 4.2V*4 string = 16.8V
• Iron lithium battery 3.6V*3 string = 10.8V / 3.6V*4 string = 14.4V
• Solar cell maximum power point tracking (MPPT) is to ensure that the light intensity changes, the photovoltaic cells have been the maximum output power to take full advantage of solar energy. In general, it is necessary to use the switch mode DC-DC converter to achieve MPPT function, to maintain the output voltage and charge current product (output power) to maximize.
• CN3722 is the use of switching buck mode DC-DC conversion way to achieve the maximum power point tracking function of photovoltaic cells, the input voltage up to 25V, very suitable for input voltage and battery voltage difference between the relatively large applications.
